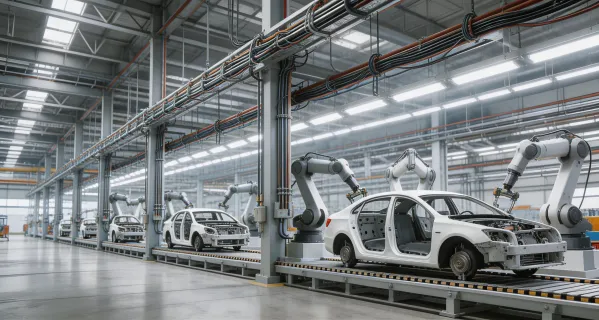

Industrial Manufacturing

Terminal blocks, connectors, and cable management for production lines, machine building, and control panel assembly. IEC 61439 compliant solutions.

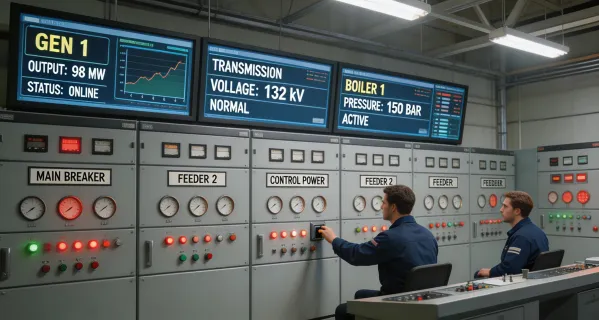

Energy & Power Generation

High-voltage rated terminal blocks, surge protection, and outdoor-rated connectors for power generation, transmission, and distribution infrastructure.

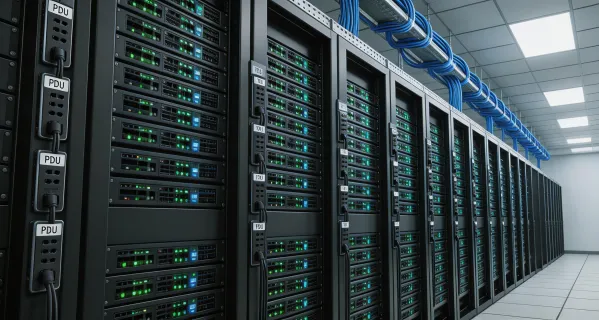

Data Centers & IT Infrastructure

High-density power distribution connectors, structured cabling solutions, and surge protection for mission-critical computing environments.

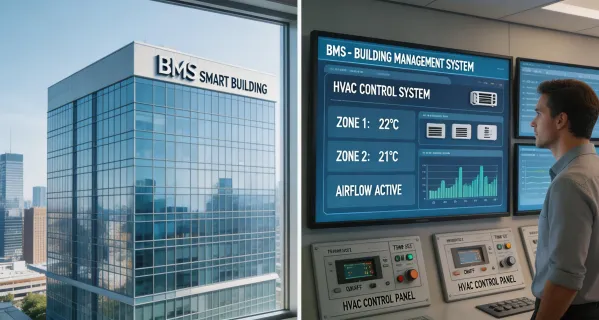

Building Automation

Compact connectors and terminal blocks for HVAC, lighting control, access systems, and building management system integration.

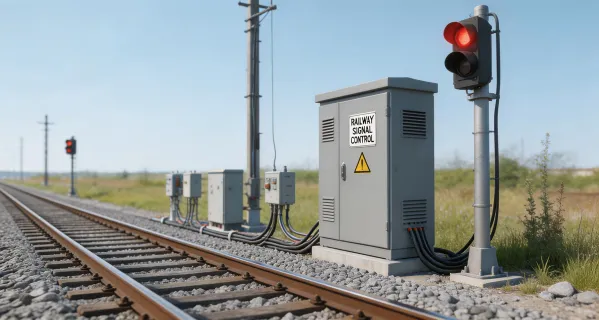

Rail & Transportation

EN 50155 compliant connectors and fire-rated wiring solutions for rolling stock, signaling, wayside equipment, and station infrastructure.

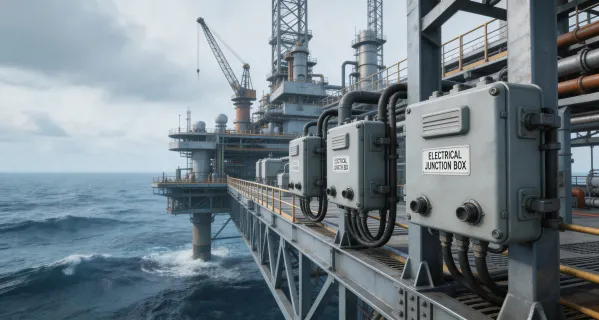

Marine & Offshore

IP69K rated connectors, ATEX/IECEx certified junction solutions, and corrosion-resistant terminal blocks for vessels, platforms, and port equipment.

Project Application Examples

Representative project profiles illustrating how our connectivity solutions perform in real-world conditions.

Automotive Manufacturing

Body Shop Robotic Cell Retrofit

Background: A European automotive OEM needed to retrofit 24 robotic welding cells with new connector interfaces to support higher welding current (up to 400A) while maintaining existing cable routing in a confined panel space.

Approach: Phoenix Contact application engineers designed a custom heavy duty connector layout using HC-B24 inserts with 400A power modules. Pre-assembled harnesses reduced on-site installation to 3 hours per cell versus the estimated 8 hours for field-wired connections.

Result: All 24 cells completed within a 2-week planned shutdown. Contact resistance measured below 0.5 mΩ after 50,000 mating cycles — well within the 1.0 mΩ acceptance threshold per IEC 61984.

Renewable Energy

50 MW Solar Farm String Combiner Upgrade

Background: A utility-scale solar installation in the Middle East required replacement of 120 string combiner boxes due to contact degradation under sustained 65°C ambient temperatures and 1500V DC operating voltage.

Approach: Specified our 1500V DC rated terminal blocks with silver-plated contacts and UV-stabilized housings rated for -40°C to +105°C. Each combiner box was pre-wired and torque-verified at our facility before shipment.

Result: Zero contact failures reported over 18 months of operation. String-level power loss reduced from 2.3% to 0.4% compared to the previous terminal solution, as measured by the site's SCADA energy monitoring system.

Data Center

Tier III Data Center Power Distribution

Background: A colocation provider expanding a Tier III facility in Southeast Asia needed modular power distribution connectors rated for 200A per circuit to support high-density server racks (25 kW per rack).

Approach: Deployed our modular busbar connector system with touch-safe finger protection (IP20) and bolted connections torqued to 25 Nm. Each module supports tool-free hot-swap replacement during planned maintenance windows.

Result: Facility achieved Uptime Institute Tier III certification. Mean time to replace a distribution module: 12 minutes versus 45 minutes for the previous hardwired approach — critical for maintaining 99.982% uptime SLA.

Connector Selection Methodology

A structured approach to specifying the right connector for your application — based on four critical engineering parameters.

Selection Parameter	What to Evaluate	Phoenix Contact Range	Key Standard
Rated Current & Voltage	Maximum continuous load, voltage class (LV/MV), AC or DC	0.5A to 232A, up to 1500V DC / 1000V AC	IEC 60947-7-1, UL 1059
Environmental Protection	Dust, water, chemical exposure, ambient temperature range	IP20 (panel interior) to IP69K (high-pressure washdown)	IEC 60529, IEC 60068-2-6 (vibration)
Connection Technology	Wiring speed, conductor type, maintenance frequency	Push-in, screw, spring-cage, IDC, crimp	IEC 61984 (connectors), IEC 60999 (terminals)
Hazardous Area Classification	Zone 0/1/2 (gas), Zone 20/21/22 (dust), Division 1/2 (NEC)	ATEX, IECEx, NEC Class I/II certified options	IEC 60079 series, ATEX Directive 2014/34/EU

For applications exceeding 1000V AC or requiring Class I Division 1 certification, contact our application engineering team for a site-specific review. Standard catalog products do not cover all combinations of voltage class + hazardous area classification.

Working in a Different Sector?

Our application engineers have experience across dozens of industries. Tell us about your project and we will find the right connectivity solution.
